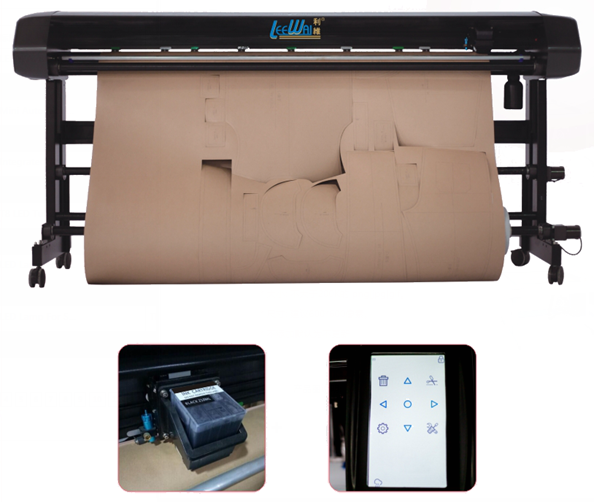

LEE WAI BRAND Vertical Inkjet Cutting Plotter

Brand :

Categories : CAD ROOM

Model :

H9-120/ H9-170/ H9-190

Features:

Nozzle column width: EPSON380=2*HP45=1 inch

Maximum printing speed: EPSON380=5*HP45

Ink cartridge capacity: EPSON380, 210ml=5*HP45, 42ML

Consumptive material cost: EPSON380=1/10-1/20*HP45

Print head service life:

EPSON380=Forever!

HP45=One-off (after 7-14 days exhausted)

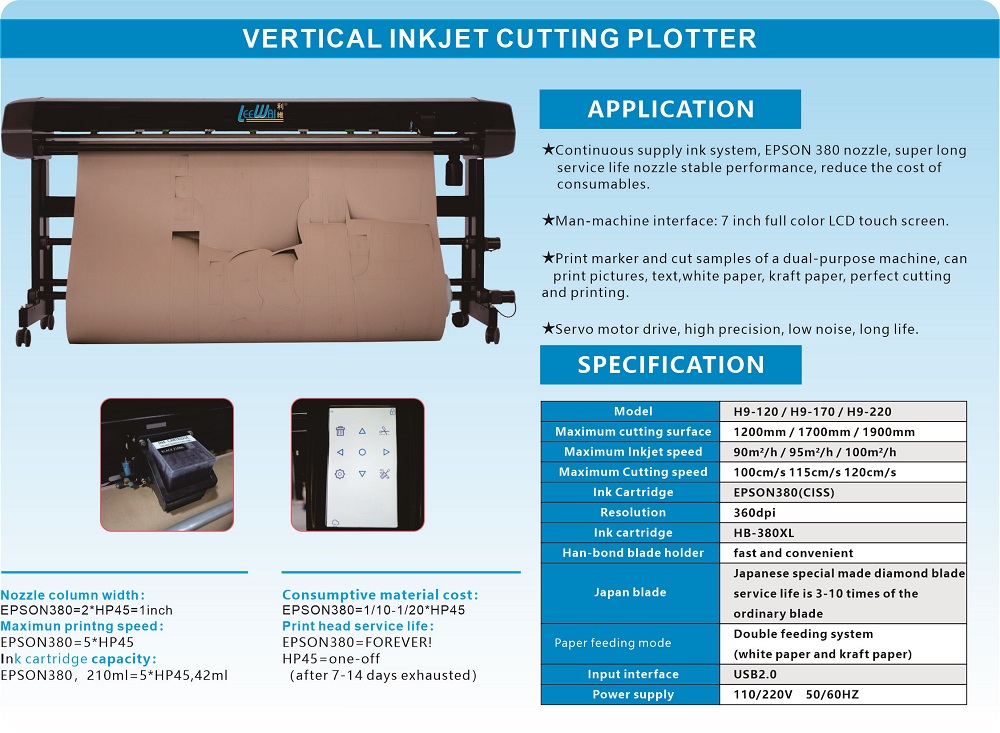

Model	H9-120	H9-170	H9-190
Max Cutting Surface	1200mm	1700mm	1900mm
Max Inkjet Speed	90m²/h	95m²/h	100m²/h
Max Cutting Speed	110cm/s	115cm/s	120cm/s
Ink Cartidge	EPSON380 (CISS)
Resolution	360dpi
Blade Holder	12 adjustable stalls, fast and convenient
Japan Blade	Japanese special made diamond blade, service life is 3-10 times of the ordinary blade.
Paper Feeding Mode	Roller type, automatic feeding papaer
Input Interface	USB 2.0
Power Supply	110/220V - 50/60 Hz
