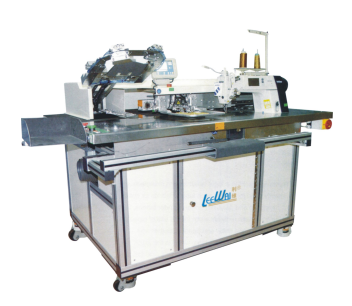

LEE WAI BRAND Automatic Pocket Patch Machine

Model

WD-8631-H

Head

Brother S-7300A

(other brands as optional)

Head speed

4000 RPM

Max sewing area

300×600mm

Voltage

220V /1 phase

Compressed air capacity

0.5 MPA, 1.8 L/MIN

Applicable fabric

Jeans, knits, woven,etc

Production

300pcs/h (200 needles)

Pattern design

programmable

Power consumption

0.5KW/h

Pattern storage

999 pcs available/ Optional USB storage

Stitch

0.05-12.7mm

Needles

DPX 17 9#-23#

Lifting height of Presser foot

20mm

Feeding & collecting mode

Automatic

Oil supply mode

Auto light-oil

Position laser light

optional

Sewing mode

automatic

Table height

Adjustable 850-950mm

Controlling system

JOOKE developed system

Stitch type

Single lock stitch sewing

Pneumatic components

Japanese standard
